.100" (2.54mm) Latching Polarized (LP) Housings and Headers (1x12)

Below you'll find female housings, male housings, male straight headers, and male right angle headers in 1x12 format. 1x12's are great for connecting 4 servos with one connector.

Connectors (PDF)
  • 2pcs for $1.61

  • 10pcs for $4.84

  • 100pcs for $38.74

  • 300pcs for $92.97

  • 1,000pcs for $213.05

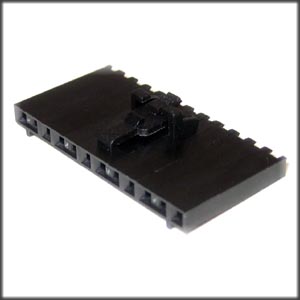

.100" (2.54mm) Latching Polarized (LP) Female Housing (1x12)

This female housing has a latching spring tab on top with press-down release, and a small solid tab molded into the bottom to allow for insertion into the male component in only one orientation. If the latching feature is undesirable, the user can easily cut off the spring tab, and the connector will still have only one possible polarity due to the polarizing tab on the bottom. This housing will mate with any of the corrosponding male parts below, and will also plug into any standard .100" male header strip. Use the "add to cart" buttons immediately to the right to purchase this item. The terminals for these housings can be purchased here. Please note that only our .100" LP terminals will work with these housings - the terminals sold elsewhere in our store for our standard .100" rectangular and servo connectors will not fit these housings.

Enlarged Image
1
  • 2pcs for $3.62

  • 10pcs for $10.86

  • 100pcs for $86.88

  • 300pcs for $208.51

  • 1,000pcs for $564.72 - OUT OF STOCK!!

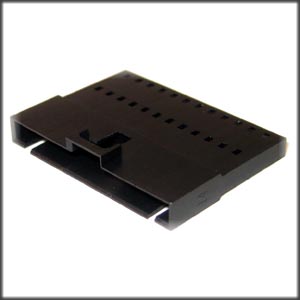

.100" (2.54mm) Latching Polarized (LP) Male Housing (1x12)

This male housing accepts the female housing above. Use the "add to cart" buttons immediately to the right to purchase this item. The terminals for these housings can be purchased here. Please note that only our .100" LP terminals will work with these housings - the terminals sold elsewhere in our store for our standard .100" rectangular and servo connectors will not fit these housings.

Enlarged Image
1
  • 2pcs for $1.72

  • 10pcs for $5.17

  • 100pcs for $38.75

  • 300pcs for $93.01

  • 1,000pcs for $213.14

.100" (2.54mm) Latching Polarized (LP) Gold Straight Header (1x12)

This male header accepts the female housing above. It has straight legs for a vertical mount on a circuit board. You can also solder wires to the legs (be sure to use proper strain relief on your solder joints). Contacts are gold plated. Use the "add to cart" buttons immediately to the right to purchase this item.

Enlarged Image
1 2
  • 2pcs for $1.84

  • 10pcs for $5.52

  • 100pcs for $41.43

  • 300pcs for $99.44

  • 1,000pcs for $227.89

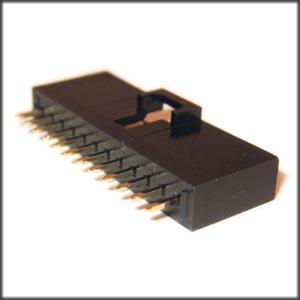

.100" (2.54mm) Latching Polarized (LP) Gold Right Angle Header (1x12)

This male header accepts the female housing above. It has right angle legs for a horizontal mount on a circuit board. Contacts are gold plated. Use the "add to cart" buttons immediately to the right to purchase this item.

Enlarged Image
1 2
