2.50mm Connector Housings and Headers (1x3) JST-EH compatible

Below you'll find 2.50mm female housings, male straight headers, and male right angle headers in 1x3 format. This family of housings and headers can be found in some lithium-polymer battery packs such as those made by Kokam and Graupner, as well as used to connect printed circuit boards to internal wires. They are compatible with JST-EH style connectors. Please note: Only the 2.50mm JST-EH style female terminals will fit these housings.

Connectors (PDF)
  • 10pcs for $1.70

  • 100pcs for $9.33

  • 300pcs for $19.60

  • 1,000pcs for $56.01

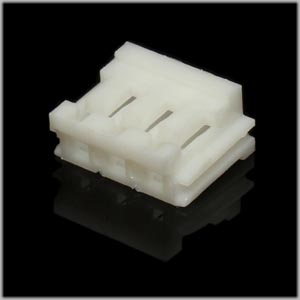

2.50mm Female Housing (1x3)

Use with our 2.50mm female terminals.

Enlarged Image
1 2
3 4
  • 10pcs for $1.99

  • 100pcs for $10.93

  • 300pcs for $22.95

  • 1,000pcs for $65.57

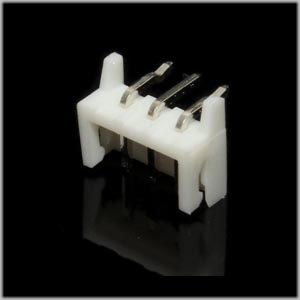

2.50mm Male Straight Header (1x3)

This male header accepts the female housing above. It has straight legs for a vertical mount on a circuit board. You can also solder wires to the legs (be sure to use proper strain relief on your solder joints). Use the "add to cart" buttons immediately to the right to purchase this item.

Enlarged Image
1 2
3
  • 10pcs for $2.15

  • 100pcs for $11.83

  • 300pcs for $24.83

  • 1,000pcs for $70.96

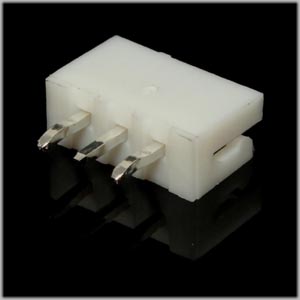

2.50mm Male Right Angle Header (1x3)

This male header accepts the female housing above. It has right angle legs for a horizontal mount on a circuit board. You can also solder wires to the legs (be sure to use proper strain relief on your solder joints). Use the "add to cart" buttons immediately to the right to purchase this item.

Enlarged Image
1 2
3
